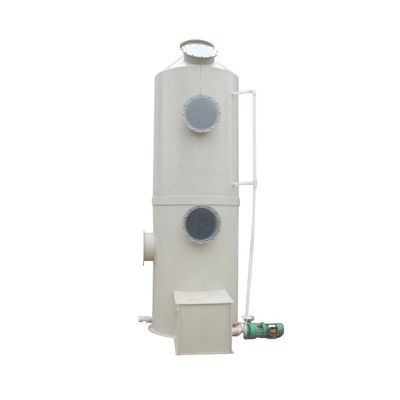

1200mm External Diameter Adsorption Wet Scrubber Column for Superior Performance

Large Image : 1200mm External Diameter Adsorption Wet Scrubber Column for Superior Performance

Product Details:

Place of Origin:	Hebei, China
Brand Name:	YITE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2,900.00/pieces 1-2 pieces
Packaging Details:	Spray Desulfurization tower is packed in wooden
Supply Ability:	500 Piece/Pieces per Year

Contact Now

1200mm External Diameter Adsorption Wet Scrubber Column for Superior Performance

Description

Applicable Industries:	Manufacturing Plant	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Engine	Warranty:	1 Year
Weight (KG):	600 Kg	After-sales Service Provided:	Video Technical Support
Material:	Pp	Usage:	Waste Gas Purification
Height:	4000mm	External Diameter:	1200mm
Pump Out/in Pipe Diameter:	40/32	Power:	1.5
Air Volume:	6000-8000	Structure:	Adsorption Tower
Customized:	Accept	Port:	Tianjin

Wet scrubber also called spray tower, purification tower, spray column. It is a new type of industrial waste gas treatment and processing equipment.
It is widely used in the pretreatment of industrial waste gas treatment, odor removal, dust removal.

This product are widely used in chemicals, chemical preparations, pharmaceutical factories,

laboratories, metallurgy, light industry, food, new energy, electroplating, pickling, petroleum,
machinery, electricity, etc.

1.Dust removal effect is good: as a result of mechanical cutting and standardized production, perpendicularity and water film can meet the design requirements, and the dust removal effect is better.

2.Long service life: the inner cylinder is made of corrosion
resistant and wear-resistant granite (ceramic) to ensure more than 20 years.

3 .Use the operating environment clean: because of the whole structure, no leakage, always have a clean, hygienic working environment.

The exhaust gas is introduced into the purification tower by the wind pipe. Through the packing layer, the exhaust gas and the absorption liquid are fully exposed to the absorption and neutralization reaction of the gas-liquid two phase. After the exhaust gas is purified, the fan is discharged into the atmosphere by the dehydration of the mist removal plate and the mist eliminator. The absorption liquid is pressurized by the pump at the bottom of the tower and then sprayed down at the top of the tower. Finally, it is recycled to the bottom of the tower for recycling. The purified acid mist exhaust gas is lower than the national emission standard.

Model	Air volume M3/h	Dimension mm Φ * Height	Pump power Kw	Fan power Kw	Inlet/outlet mm	Spaying layer
YT-04PL800	2000~3500	800*3000	1.1	3	300	2
YT-04PL1000	3000~5000	1000*4000	2.2	4	300	2
YT-04PL1200	5000~7000	1200*4500	2.2/3.0	5.5	400	2 or 3
YT-04PL1500	7000~10000	1500*5000	3.0	7.5	400	3
YT-04PL1800	11000~15000	1800*5500	3.0	11	500	3
YT-04PL2000	15000~19000	2000*6000	4.0	22	500	3
YT-04PL2200	19000~23000	2200*6500	4.0/5.5	30	600	3
YT-04PL2500	23000~30000	2500*6500	5.5/7.5	37	600	3
Remark	Estimated data, should be calculate according to specific working condition.	The height can be adjusted according to the working condition. The higher, the better.	Can be adjusted according to the nozzle kind and quantity.	Just for reference. Can be adjusted according to the device in the system	Can be customized to be suitable for the current pipeline.	Can be customized according to the height.

According to waste gas type and temperature, we can use PP(Polypropylene)FRP(Glass fiber reinforced plastic), mild steel, stainless steel as the wet scrubber’s body, The materials of the corresponding internal accessories will also change. For example, there are four kinds of grid plates: PP, FRP, carbon steel and stainless steel, and high surface area materials include PP, ceramic rings, and stainless steel Raschig rings. The nozzles are available in stainless steel, PTFE (polytetrafluoro-ethylene) and titanium alloy materials.

1.Small footprint and convenient installation.

2.Low water consumption and power consumption.

3.Corrosion resistance, non-wear and long service life.

4.Reliable operation of equipment, simple maintenance and convenience.
