Filter Industry Dust Wet Scrubber for Steam Boiler Online Support Pulverized Coal Burner

Large Image : Filter Industry Dust Wet Scrubber for Steam Boiler Online Support Pulverized Coal Burner

Product Details:

Place of Origin:	Hebei, China
Brand Name:	YITE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,800.00 - $5,500.00/sets
Packaging Details:	transport by container
Supply Ability:	100 Set/Sets per Year

Contact Now

Filter Industry Dust Wet Scrubber for Steam Boiler Online Support Pulverized Coal Burner

Description

Applicable Industries:	Other	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Engine	Condition:	New
Minimum Particle Size:	0.3Micron	Dimension(LWH):	7117002701(m'm)
Weight:	130 Kg	Warranty:	1year
Product Name:	Cyclone Dust Collector	Application:	Industrial Dust Removal
Name:	Industrial Environmental Protection Equipment	Usage:	Filter Industry Dust
Main Function:	Removing Industrial Dust	Filter Element Type:	Air Filter Cartridge
Voltage:	Local Power	Air Volume:	5000 - 120200m3
Filter Material:	Filter Paper	After Warranty Service:	Online Support
Port:	TIANJIN

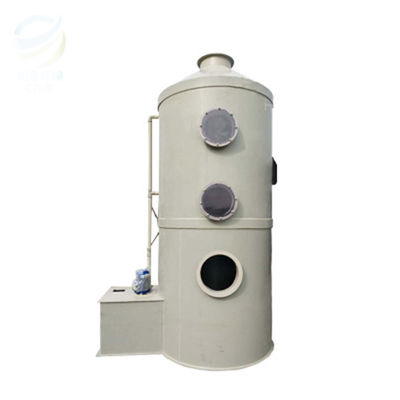

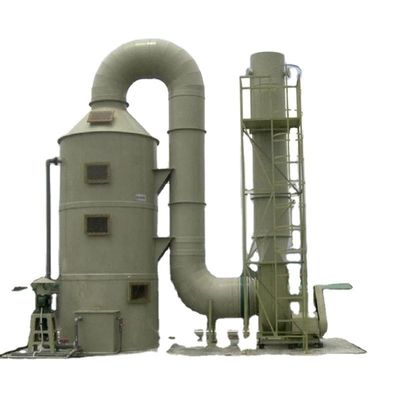

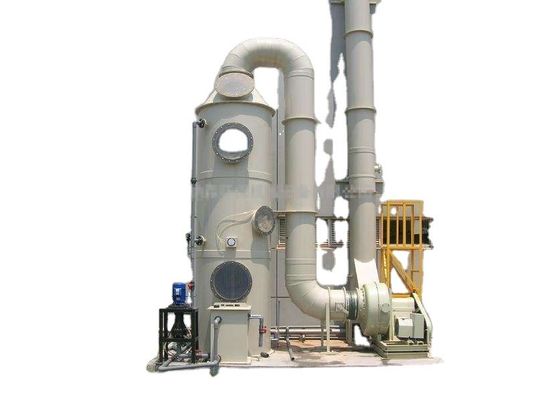

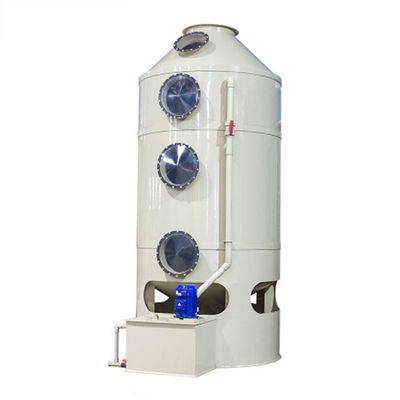

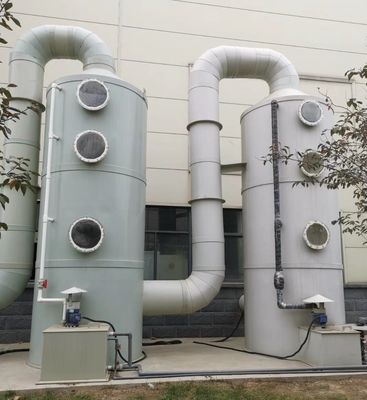

Wet scrubber also called spray tower, purification tower, spray column. It is a new type of industrial waste gas treatment and processing equipment.
It is widely used in the pretreatment of industrial waste gas treatment, odor removal, dust removal.

This product are widely used in chemicals, chemical preparations, pharmaceutical factories,

laboratories, metallurgy, light industry, food, new energy, electroplating, pickling, petroleum,
machinery, electricity, etc.

1.Dust removal effect is good: as a result of mechanical cutting and standardized production, perpendicularity and water film can meet the design requirements, and the dust removal effect is better.

2.Long service life: the inner cylinder is made of corrosion
resistant and wear-resistant granite (ceramic) to ensure more than 20 years.

3 .Use the operating environment clean: because of the whole structure, no leakage, always have a clean, hygienic working environment.

The exhaust gas is introduced into the purification tower by the wind pipe. Through the packing layer, the exhaust gas and the absorption liquid are fully exposed to the absorption and neutralization reaction of the gas-liquid two phase. After the exhaust gas is purified, the fan is discharged into the atmosphere by the dehydration of the mist removal plate and the mist eliminator. The absorption liquid is pressurized by the pump at the bottom of the tower and then sprayed down at the top of the tower. Finally, it is recycled to the bottom of the tower for recycling. The purified acid mist exhaust gas is lower than the national emission standard.

Model	Air volume M3/h	Dimension mm Φ * Height	Pump power Kw	Fan power Kw	Inlet/outlet mm	Spaying layer
YT-04PL800	2000~3500	800*3000	1.1	3	300	2
YT-04PL1000	3000~5000	1000*4000	2.2	4	300	2
YT-04PL1200	5000~7000	1200*4500	2.2/3.0	5.5	400	2 or 3
YT-04PL1500	7000~10000	1500*5000	3.0	7.5	400	3
YT-04PL1800	11000~15000	1800*5500	3.0	11	500	3
YT-04PL2000	15000~19000	2000*6000	4.0	22	500	3
YT-04PL2200	19000~23000	2200*6500	4.0/5.5	30	600	3
YT-04PL2500	23000~30000	2500*6500	5.5/7.5	37	600	3
Remark	Estimated data, should be calculate according to specific working condition.	The height can be adjusted according to the working condition. The higher, the better.	Can be adjusted according to the nozzle kind and quantity.	Just for reference. Can be adjusted according to the device in the system	Can be customized to be suitable for the current pipeline.	Can be customized according to the height.

According to waste gas type and temperature, we can use PP(Polypropylene)FRP(Glass fiber reinforced plastic), mild steel, stainless steel as the wet scrubber’s body, The materials of the corresponding internal accessories will also change. For example, there are four kinds of grid plates: PP, FRP, carbon steel and stainless steel, and high surface area materials include PP, ceramic rings, and stainless steel Raschig rings. The nozzles are available in stainless steel, PTFE (polytetrafluoro-ethylene) and titanium alloy materials.

1.Small footprint and convenient installation.

2.Low water consumption and power consumption.

3.Corrosion resistance, non-wear and long service life.

4.Reliable operation of equipment, simple maintenance and convenience.

Our Advantages

FAQ

Q1.Are you a factory and trading company?
A: We are a factory

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Can you suggst me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need

Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items ,
transportation ways and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they comefrom.
