0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant

0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant
0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant

Large Image :  0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant

Product Details:
Place of Origin: Hebei, China
Brand Name: YITE
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $34.30/pieces 10-19 pieces
Packaging Details: 1.standard sea transport or as per customer's requirement<br>2. The whole equipment is wrapped with moisture-proof film.<br>3The motor and other parts are packed in wooden cases<br>4. Fix the equipment in the container with bolts
Supply Ability: 1000 Piece/Pieces per Month Cartridge Filter
Contact Now

0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant

Description
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining Video Outgoing-inspection: Provided
Machinery Test Report: Provided Warranty Of Core Components: 1 Year
Core Components: Cartridge Filter Condition: New
Efficiency: 99.9% Construction: Cartridge Filter
Porosity: 0.3um Dimension(L*W*H): D325*660 Mm
Weight: Light Weight Warranty: 1 Year
Product Name: Cartridge Filter Material: Polyester Fiberglass
Application: Air Filtration System Outer Diameter: 325 Mm
Inner Diameter: 215 Mm Height: 800 Mm
Filter Area: 10.8 M2 Recommended Flow: 518 M3/h
Limit Traffic: 972 M3/h Band Number: 2
After Warranty Service: Video Technical Support, Online Support, Spare Parts Local Service Location: None
Showroom Location: None Marketing Type: New Product 2020
After-sales Service Provided: Online Support Port: Tianjin

Hot sale Industrial dust pleated air cartridge filter

0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 0

0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 2

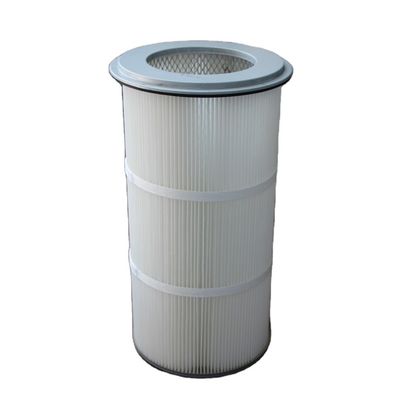

Industrial air cartridge filter is a common filter element of industrial dust collector. The structure of the filter cartridge is divided into four parts: top cover, metal frame, pleated filter material and base.Compared with conventional dust bag, it has the following advantages:



1. Pleated filter cartridge, increase the filtration area;
2. Increase the treated air volume and reduce the filtering wind speed;
3. Easy ash cleaning, small pressure difference, and compressed air saving;
4. The service life of the filter cartridge is prolonged;
5. dust filter cleaner Easy to install and replace.



0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 3

High efficiency Industrial air cartridge filter

1. 100% polyester filter media
2. Filter efficiency up to 99.99%
3. Integrated design. quick and easy installation,maintenance

4. Wide pleat depth

5. PTFE membrane,antistatic etc.



Industrial air cartridge filter can be customized according to your specific working condition: size, material and other details
Paper filter cartridge Operating pressure Mpa 0.3
Rated flow L/min 600
Working temperature ℃ 80
Polyester filter cartridge Operating pressure Mpa 30
Rated flow L/min 2000
Working temperature ℃ ≤160
Membrane filter cartridge Membrane filter cartridge Mpa 30
Rated flow L/min 2000
Working temperature ℃ ≤200


Table of main parametes for cartridge filter

 Dimension  YT-LT01 YT-LT02 YT-LT03 YT-LT04 YT-LT05 YT-LT06 YT-LT07 YT-LT08 YT-LT09
Diameter(mm) 325 325 325 325 230 230 230 190 190
Inner Diameter 215 215 215  215  90  90  90  70  70
Height (mm)  660  800  900  1000  700  900  1000  900  1000
Area (m2)  8.9  10.8  12.1  13.5  4.5  5.8  6.5  3  3.4
Rec Flow(m3/H)  428  518  583  648  216  278  312  144  163

For dust collector, the regular size is D325*660mm,D325*800 and D325*1000.

However, due to different requirements of customer, customization is also available .


0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 4



0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 5

0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 7

0.3um Porosity Pleated Air Cartridge Filter for Dust Filtration in Manufacturing Plant 8
