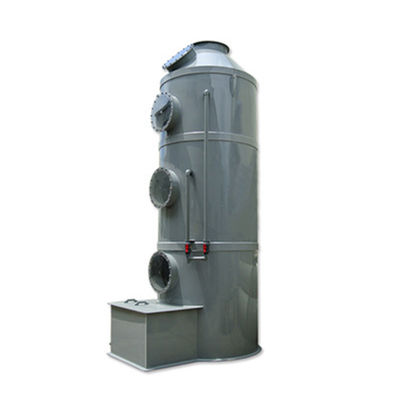

4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal

Name: 4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal
Brand: Botou Yite Environmental Protection Machinery Manufacturing Co.,Ltd
Price: 1.00 USD
Availability: InStock

All Products

Industrial Dust Collector
(124)

Industrial Wet Scrubber
(81)

Dust Collector Accessories
(24)

Industrial Fume Extractor
(16)

VOC Catalytic Combustion Purification Equipment
(6)

Gas Treatment Equipment
(4)

Industrial Downdraft Table
(2)

Hot Sale
(22)

Certification

I'm Online Chat Now

4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal

Large Image : 4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal

Product Details:

Place of Origin:	Hebei, China
Brand Name:	YITE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2,900.00/sets 1-2 sets
Packaging Details:	1.standard sea transport or as per customer's requirement<br>2. The whole equipment is wrapped with moisture-proof film.<br>3The motor and other parts are packed in wooden cases<br>4. Fix the equipment in the container with bolts
Supply Ability:	500 Piece/Pieces per Year exhaust gas disposal absorption system

Contact Now

4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal

Description

Condition:	New	Applicable Industries:	Manufacturing Plant, Construction Works , Energy & Mining, Chemical Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Pressure Vessel, Pump, FAN
Purify Efficiency:	99.9%	Warranty:	1 Year
Material:	Pp	Product Name:	Exhaust Gas Absorption System
Height:	4000mm	External Diameter:	1200mm
Air Volume:	6000-8000m3/h	Pump Out/in Pipe Diameter:	40/32(mm)
Power:	1.5kw	Weight:	600kg
Colour:	White;customized	Customized:	Accept
After Warranty Service:	Video Technical Support, Online Support, Spare Parts	Local Service Location:	None
After-sales Service Provided:	Video Technical Support, Free Spare Parts, Online Support	Port:	Tianjin Port

PP hcl fumes scrubber used in exhaust gas disposal absorption system

4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal 0

4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal 2

the working principle of exhaust gas disposal absorption system:

The acid mist exhaust gas is introduced into the purification tower through the air duct. After passing through the stuffing layer, exhaust gas and sodium hydrogenated absorbent are in full contact with gas and liquid to absorb and neutralize gas. After purification, the acid mist exhaust gas is dehydrated and removed by the smoke and dust board, and then discharged into the atmosphere by the fan. After pressurizing with water pump at the bottom of the Wet Scrubber For Acid Gas, spray the absorbent on the top of the tower and then circulate to the bottom of the tower. The purified acid mist exhaust meets the national emission standards.

4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal 4

We will design exhaust gas disposal absorption system of appropriate specifications for you according to the working conditions provided by you. The following are the conventional models we have in stock for your reference:
model	Air volume(m³/h)	tower size(mm)	water tank size(mm)	thickness(mm)	pump power(kw)	tuyere size(mm)
YT-04PL600	1500	φ600*2800	500400450	PP-A/6	0.75	φ200
YT-04PL650	2000	φ650*3000	500400450	PP-A/6	0.75	φ250
YT-04PL800	3000	φ800*3600	500400450	PP-A/6	1.5	φ315
YT-04PL900	4000	φ900*3600	500400450	PP-A/6	1.5	φ315
YT-04PL1000	5000	φ1000*3600	600400450	PP-A/6	1.5	φ400
YT-04PL1100	6500	φ1100*3800	600400450	PP-A/8	2.2	φ400
YT-04PL1200	8000	φ1200*4200	600400450	PP-A/8	2.2	φ450
YT-04PL1400	10000	φ1400*4200	600400450	PP-A/8	2.2	φ500
YT-04PL1500	13000	φ1500*4200	600400450	PP-A/8	3	φ500
YT-04PL1650	15000	φ1650*4200	600500450	PP-A/8	3	φ600
YT-04PL1800	18000	φ1800*4500	600500450	PP-A/10	5.5	φ650
YT-04PL2000	20000	φ2000*4500	700500500	PP-A/10	5.5	φ700
YT-04PL2200	22000	φ2200*4500	800600500	PP-A/10	7.5	φ800
YT-04PL2400	25000	φ2400*5000	1000600500	PP-A/10	7.5	φ800
YT-04PL2600	30000	φ2600*5000	1000600500	PP-A/10	7.5	φ1000
YT-04PL2800	35000	φ2800*5000	1200600500	PP-A/10	11	φ1000
YT-04PL3000	40000	φ3000*5000	1200600500	PP-A/12	11	φ1000
YT-04PL3300	45000	φ3300*5500	1500600500	PP-A/12	15	φ1200
YT-04PL3600	50000	φ3600*6000	1500600500	PP-A/12	15	φ1200

4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal 5

Advantages of exhaust gas disposal absorption system:
1. High dust removal and desulfurization efficiency. When alkaline washing is used, the desulfurization efficiency can reach 85%.
2. The equipment covers a small area and is easy to install.
3. The index of water consumption and electricity consumption is low.
4. Corrosion resistance, no wear and long service life.
5. The exhaust gas disposal absorption system is reliable in operation and easy to maintain.

4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal 8

4000mm Height PP HCL Fumes Scrubber for Effective Exhaust Gas Treatment and Disposal 10
